Description

After the tripe has been cleaned on the umbrellas and inspected it is given its final washing and scalding in this carefully designed machine. The washing cylinder cleans the tripe by the action of the scraper-edge holes 7/8″ diameter on 2″ centers. This cleaning and scraping action is tremendously increased by the exclusive LeFiell Pyramid Baffles which not only gives additional and effective scraping surfaces, but agitate and tumble the tripe, resulting in quicker and better cleaning.

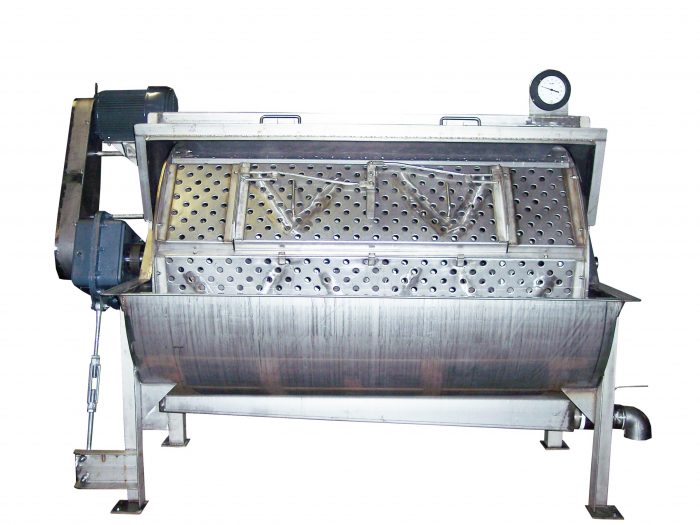

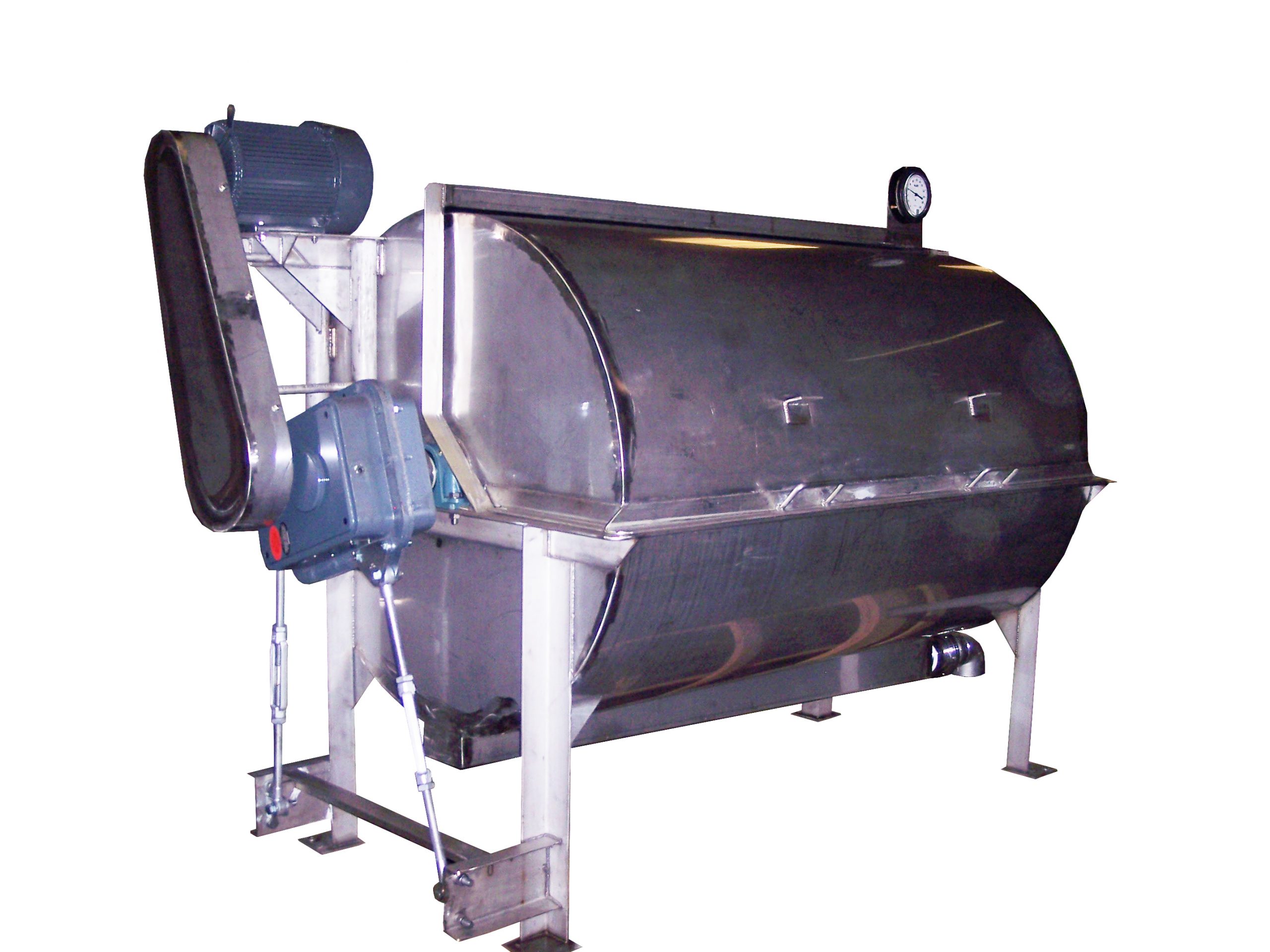

The heavily constructed cylinder is mounted on self-aligning roller bearings and has a removable inner door for easy loading and unloading, held in place by two positive latches. The cylinder revolves in a sturdy tank having a sliding splash-proof door. The tank is fitted with a 4″ fast opening valve for direct connection to the sewer, 1″ water inlet.

Available:

All stainless steel construction

Stainless steel drum

Electro mechanical or hydraulic drive

Hydraulic door lifters optional

Drive may be either right or left hand
