Description

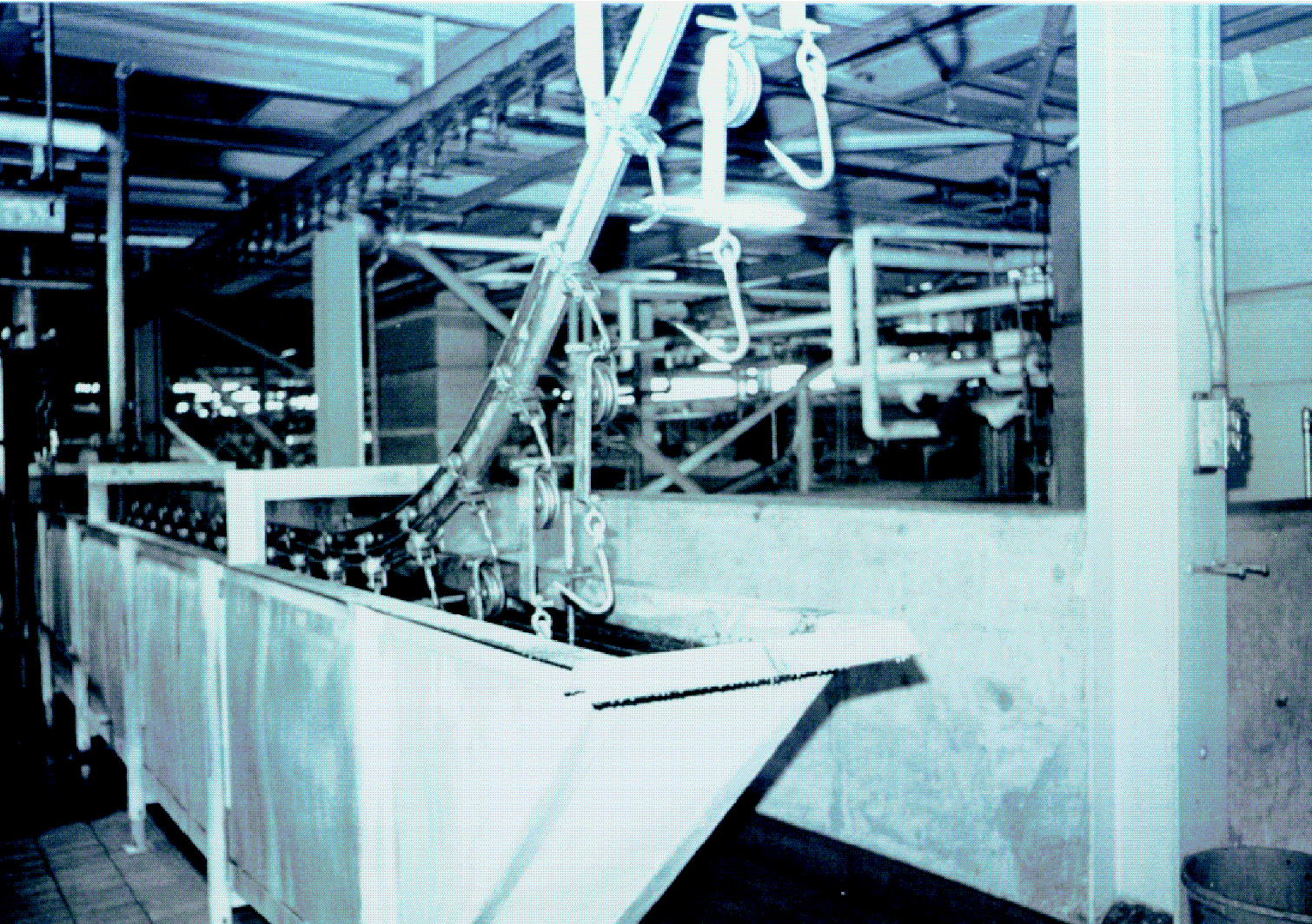

The LeFiell Continuous Trolley Cleaning and Oiling System follows the same pattern of operation as the manual cleaning and oiling system. The advantages of using the continuous cleaning and oiling are realized when the plant is operating under a high rate of kill. Trolleys exiting the end of line are immediately conveyed to the 25 foot long Cleaning Tank. From the Cleaning Tank, trolleys are conveyed through the Oil Dip Tank. After the Oil Dip Tank, trolleys are conveyed through the Trolley Blow-off and Hook Sterilizer Cabinet where the trolleys are cleaned of any excess lubricant and the hooks are sterilized, ready for the next cycle. After the Trolley Blow-off and Hook Sterilizer Cabinet, individual trolleys are immediately conveyed back to the line on the kill floor.

Equipment consists of the following:

9060-1 Trolley Cleaning Tank: 2′-0″ wide x 25′-0″ long x 4′-0″ high, complete with circulation pump, steam heating coils and thermostatic temperature control valve.

9060-2 Trolley Rinse Cabinet: Conveyor mounted, stainless steel construction, complete with 1-1/2″ drain connection and 1/2″ hot water supply connection.

9060-3 Oil Dip Tank: 2′ wide x 6′ long, complete with circulating pump, steam heating coil and thermostatic temperature control valve. Includes 2′ wide x 4′ long stainless steel oil drain pan at discharge end.

9060-4 Trolley Blow-off and Hook Sterilizer Cabinet: Stainless steel construction, conveyor mounted, complete with 1-1/2″ drain, 1/2″ sterilized water and 1/2″ compressed air connections.
